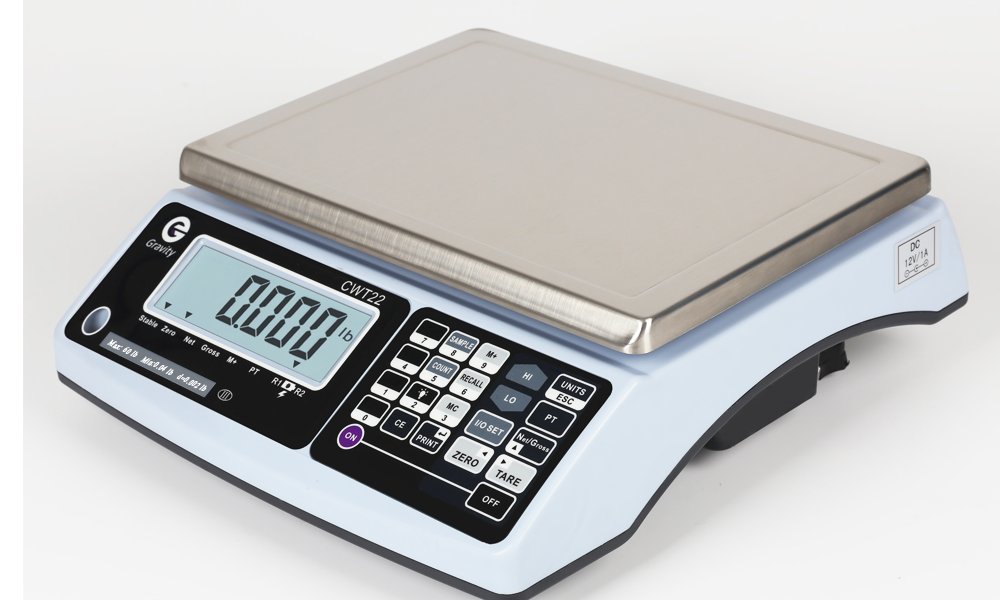

CWT22

High Precision Multi-Function Weighing Scale

CWT 22 is a high precision multi-functional scale that can perform weighing, sample counting, and checkweighing (HI-OK-LO). Simple and rugged design makes it ideal for many applications from farmer market to industrial weighing.
Item model :CWT22



Category:

Features

Weighing, Sample Counting (PCS), and Check HI-OK-LO

Automatic Zero Tracking (AZT)

Initial Zero Setting Mechanism (IZSM)

Semi-Automatic Zero/Tare (Push Buton)

Single Range/Dual Range (In the models below, D indicates dual range)

Load Cell: ZEMIC Model L6D (CC 11-012) or other metrological eqivalent and NTEP certfied

Large LCD display with backlit

Order Information

Model Capacity lb Readability* lb Load Cell ** Division
CWT22-6 6 0.001/0.002 L6D-6KG 3000
CWT22-15 15 0.002/0.005 L6D-10KG 3000
CWT22-30 30 0.005/0.01 L6D-20KG 3000
CWT22-60 60 0.001/0.002 L6D-35KG 3000

*  Dual Range

** or equivalent NTEP certified

Document Download

CWT22 User and Service Manual

NTEP Certificate

General Specifications

Accuracy Class III
Division Nmax 3000
Internal Division 30000
Capacity 6, 15, 30, 60 lb (3, 6, 15 30 Kg)
Displayed Units kg, g, lb, oz, pcs(counting)
Temperature Limits 14 F to 104 F (-10 C to 40 C)
Speed of A/D Conversion 7.5, 15, 30 Hz
Interface RS232
Approval NTEP CC 17-053
Warranty 1 Year

Model Load Cell

Output Sensitivity ( = F.S.) 2 ± 0.2 mV/V
Nonlinearity less than 0.01% F.S.

Power

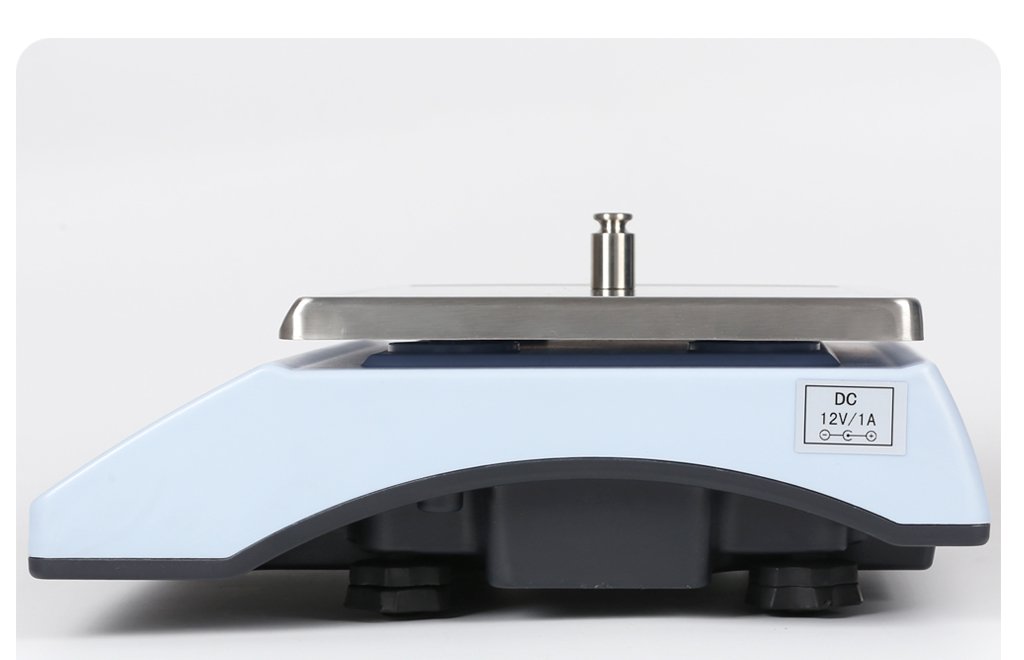

Input/Output 120 -240 V/12V/1A
Battery Type Lead Acid Rechargeable
Voltage/Output 6 V
Life With Backlight Off/Standby 320 hours/4 AH
Life With Backlight On/Weighing 120 hours/12 mA
Auto Power Off Yes

Display Panel

Type LCD with LED backlit
Size 1.2 ” (30 mm)
Color Blue
Digits 7

Platter

Material Stainless Steel
Platter Size 8.7 ” x 12.1″ (220 mm x 310 mm)

Volume and Weight

Product Weight Net/Gross 9.3 lb/10 lb

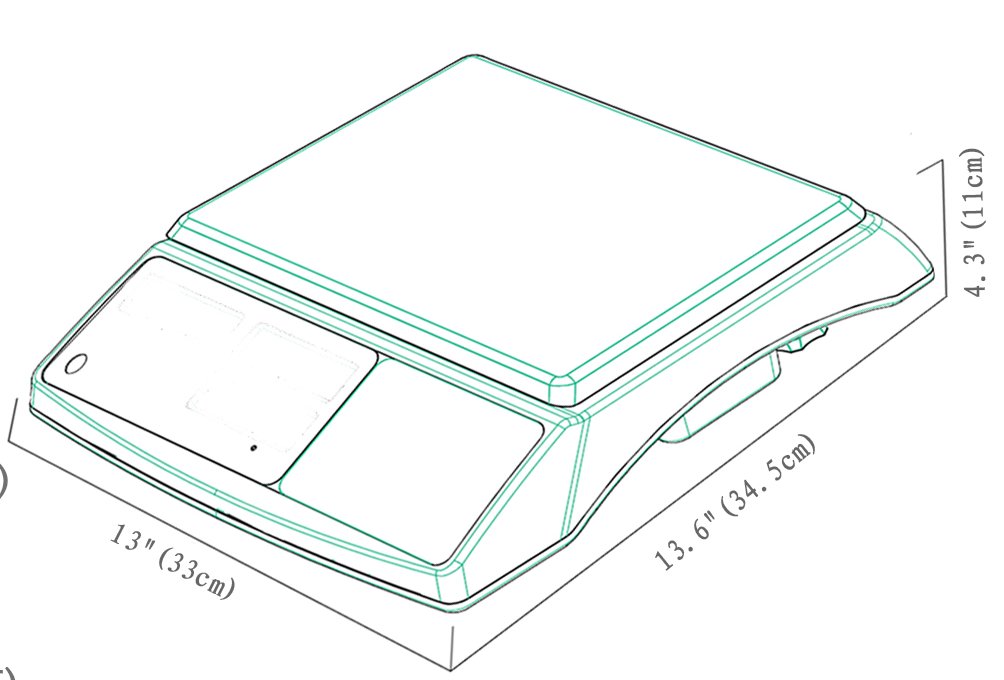

Dimension (inch) L X W X H 13.6″ x 13″ x 4.3″ (345 x 330 x112 mm)
Packing Dimension 15″ x 15″ x 5.9″ (380 x 380 x 150 mm)
