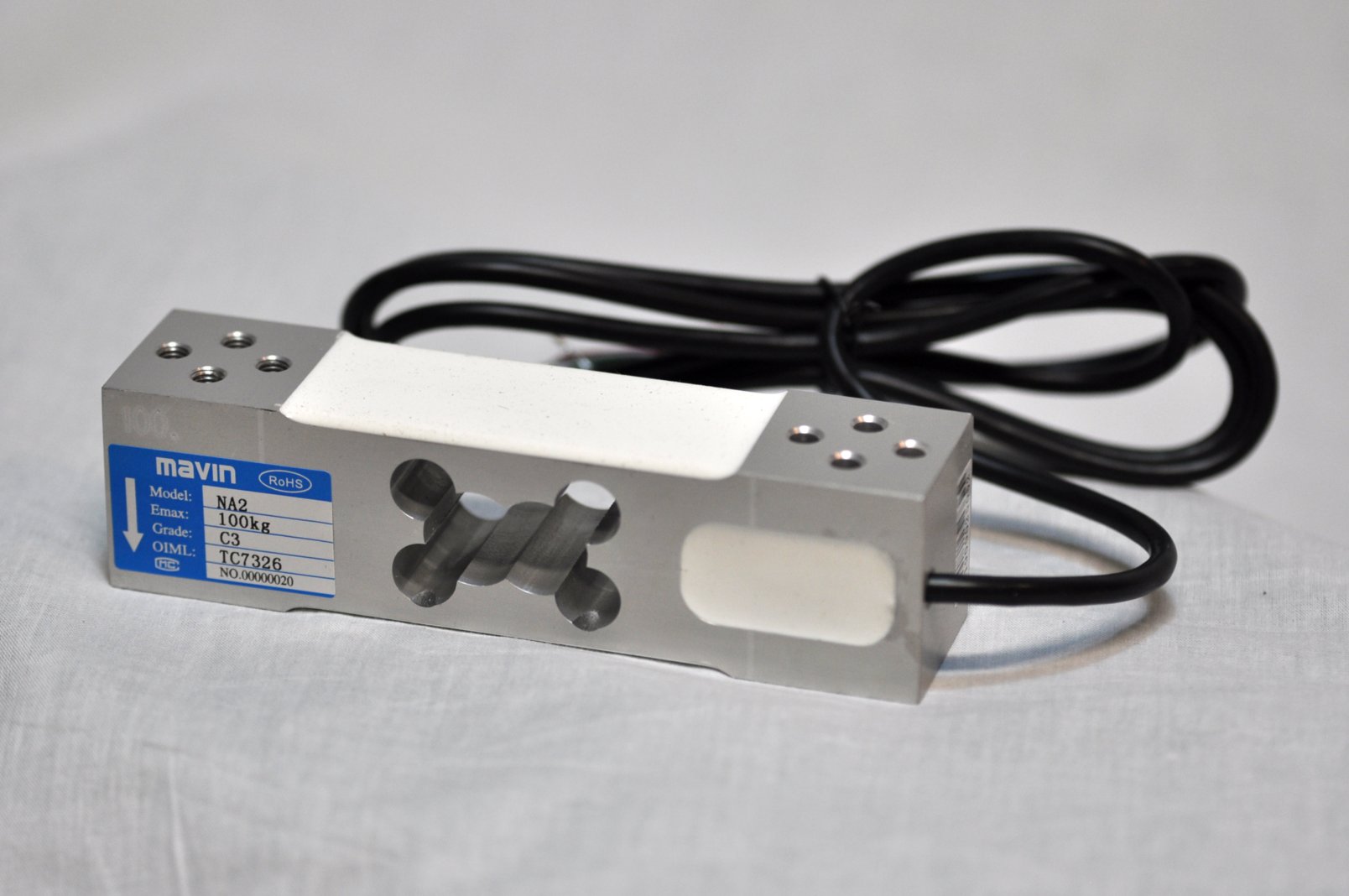

| NTEP certifiedAluminum construction with parallel beamSilicon adhesive sealed, surface anodized and anti-corrosionIntegral structure and easy installationSuitable for pricing scales, platform scales and other electronic weighing devices Max platform size is 400 mm x 400 mm (16 inch x 16 inch)Interchangeable products: ZEMIC L6E.Other compatible products: Artech 61022, Celtron LPS, RiceLake RL1521, Tedea 1022, and Vishay C2G/LPS. Please note that this product is metric based.
|

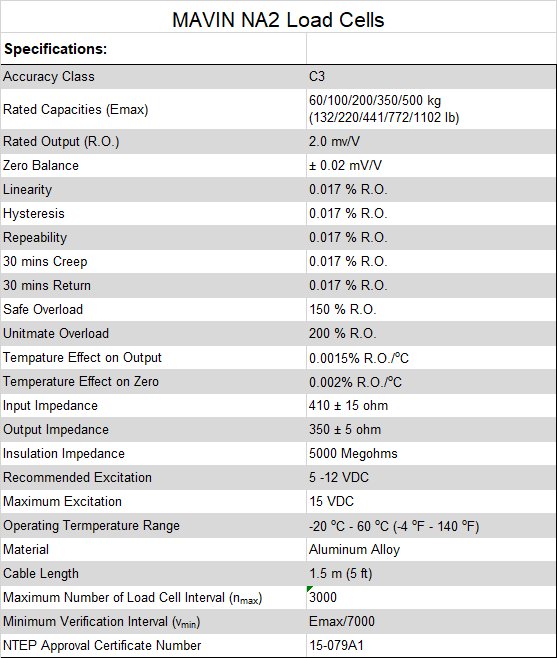

| Specifications: | |
|---|---|
| Accuracy Class | C3 |
| Rated Capacities (Emax) | 60/100/150/200/350/500 KG |
| Rated Output (R.O.) | 2.0 mv/V |
| Zero Balance | ± 0.02 mV/V |
| Linearity | 0.017 % R.O. |
| Hysteresis | 0.017 % R.O. |
| Repeatability | 0.017 % R.O. |
| 30 mins Creep | 0.017 % R.O. |
| 30 mins Return | 0.017 % R.O. |
| Safe Overload | 150 % R.O. |
| Ultimate Overload | 200 % R.O. |
| Temperature Effect on Output | 0.0015% R.O./oC |
| Temperature Effect on Zero | 0.002% R.O./oC |
| Input Impedance | 410 ± 15 ohm |
| Output Impedance | 350 ± 5 ohm |
| Insulation Impedance | 5000 Megaohms |
| Recommended Excitation | 5 -12 VDC |
| Maximum Excitation | 15 VDC |
| Operating Temperature Range | -20 oC – 60 oC (-4 oF – 140 oF) |
| Material | Aluminum Alloy |
| Cable Length | 1.5 m (5 ft) |
| Maximum Number of Load Cell Interval (nmax) | 3000 |
| Minimum Verification Interval (vmin) | Emax/7000 |

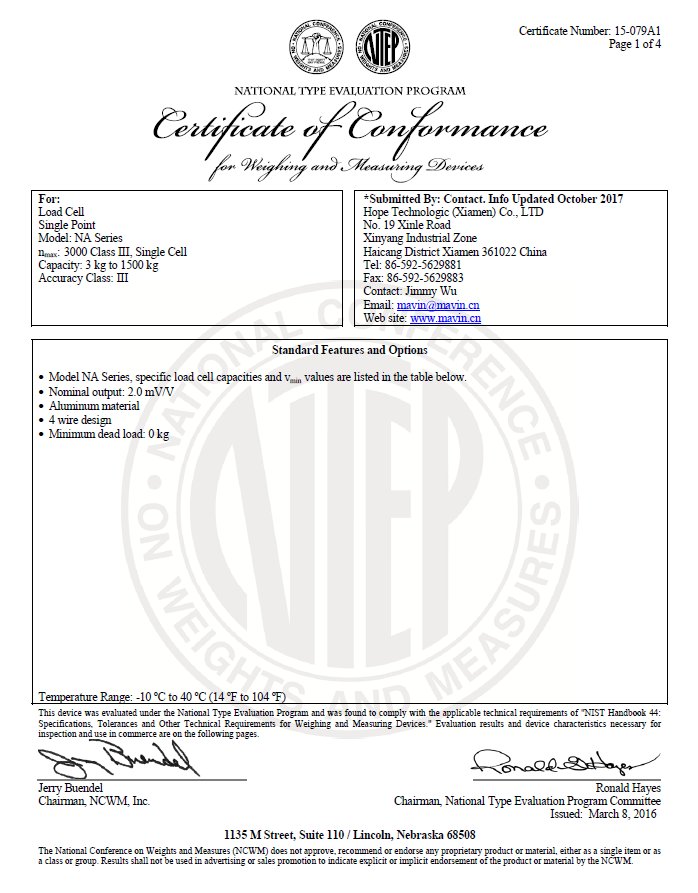

| NTEP Approval Certificate Number | 15-079A1 |
