Features
Weighing, Sample Counting (PCS), and Check HI-OK-LO
Automatic Zero Tracking (AZT)
Initial Zero Setting Mechanism (IZSM)
Semi-Automatic Zero/Tare (Push Buton)
Waterproof class: IP68

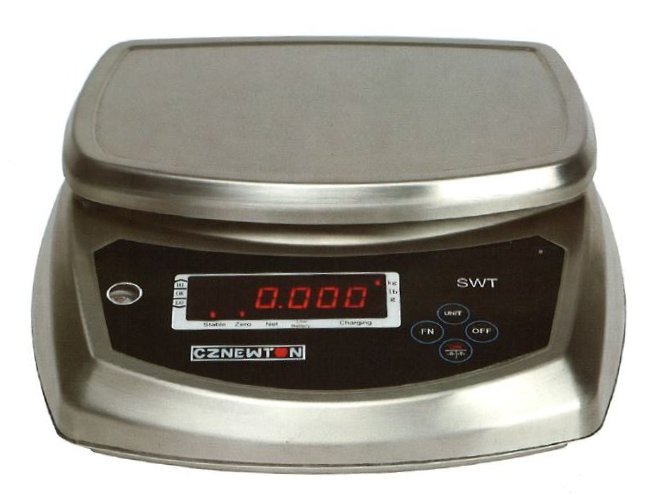

Stainless Steel Washdown Weighing Scale
SWT is a stainless steel washdown weighing scale with IP68 rating.
Item model :SWT
General Specifications
| Accuracy Class | III |
|---|---|
| Division Nmax | 3000 |
| Internal Division | 30000 |
| Capacity | 6, 15, 30, 60 lb (3, 6, 15 30 Kg) |
| Displayed Units | kg, g, lb |
| Temperature Limits | 14 F to 104 F |
| Speed of A/D Conversion | 7.5, 15, 30 Hz |
| Interface | RS232 |
| Approval | |
| Warranty | 1 Year |
Model Load Cell
| Output Sensitivity ( = F.S.) | 2 ± 0.2 mV/V |
|---|---|
| Nonlinearity | less than 0.01% F.S. |
Power
| Input/Output | 100 -240 V/8V/1A |
|---|---|
| Battery Type | Lead Acid Rechargeable |
| Voltage/Output | 6 V /5 Ah |
| Life With Backlight Off/Standby | 100 hours/5 AH |
| Life With Backlight On/Weighing | /12 mA |
| Auto Power Off | Yes |
Display Panel
| Type | LCD |
|---|---|
| Size | 15 mm |
| Color | Red |
| Digits | 7 |
Platter
| Material | Stainless Steel |
|---|---|
| Platter Size | 7.5″ x 11.0″ (190 x280 mm ) |
Volume and Weight
| Product Weight Net/Gross | 9.5 lb/10 lb |
|---|---|

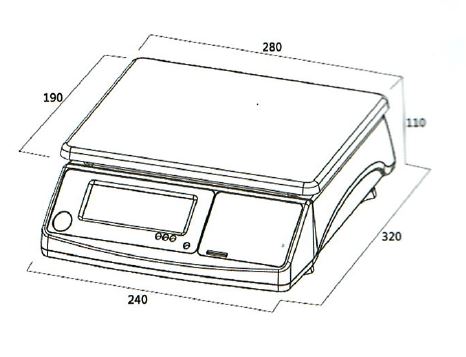

| Dimension (inch) L X W X H | 12.6″ x 9.4″x 4.3″ (320 x 240 x 110 mm) |
| Packing Dimension |
Other Specifications
| Waterproof | IP68 |
|---|
